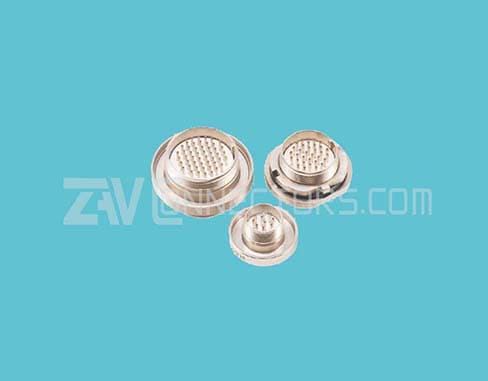

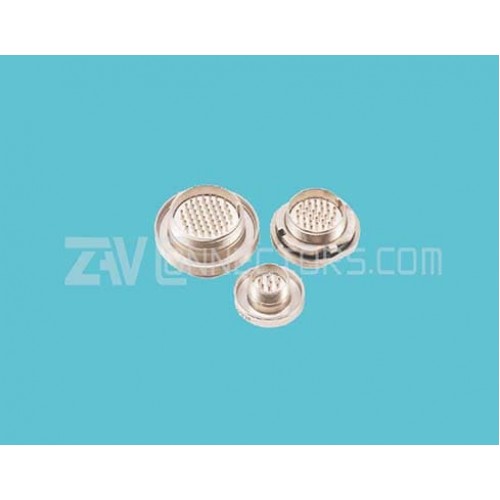

RRSЗ, RRS4, RRS5, RRS6 CONNECTORS

The connectors consist of RRS3, RRS4, RRS5 hermetic panel-mount plugs, non-hermetic RRS3, RR3-E free sockets, RRS6 hermetic connector adapter with 2 RRSЗ free sockets.

RRS3 4- and 7-pin plugs are mates of RCATV sockets, produced according to AV0.364.047TU with the corresponding number of contacts.

The fastening of the RRS3 plug shell and RRS6 connector adapter is provided by welding, the RRS4 plug – with a nut, the RRS5 plug – with screws.

Coating of contacts:

the male is nickel, gold

the female is gold

Connectors have single-key shell polarization and multi-position installation of insulators, which prevents confusion when mating the same diameter. The connectors are screwed together.

Free sockets are made without a shell, with a straight or angled shell, and the panel-mount plugs are made without a shell.
