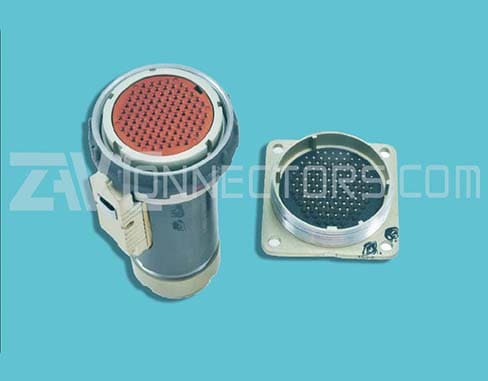

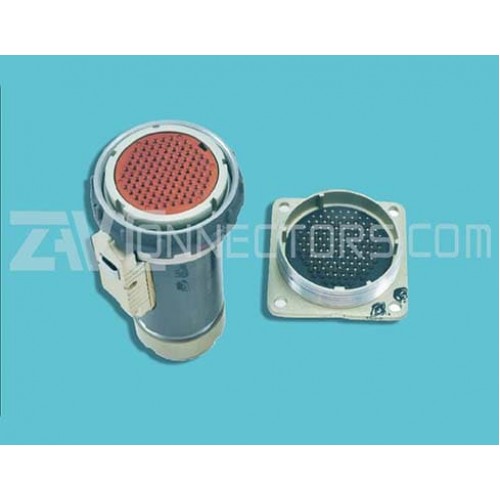

RRM46, RRM46G CONNECTORS

Connectors consist of two parts: plugs and sockets. The plugs and sockets can be panel-mount and free. The panel-mount parts are made without a shell, and free parts are made with a straight or angled tube and a locating element. The locating element in the mated position of the connector secures the coupling nut against self-unscrewing. Free plugs (sockets) can be supplied without a shell. The number of contacts is 102, and the contact diameter is 1 mm. The connectors are threaded, and connectors have multi-key multi-position (20 variants) shell polarization. Panel-mount plugs (sockets) are mated with free sockets (plugs) of only one polarization. Panel-mount plugs are made in hermetic or non-hermetic versions.

The contacts’ coating is gold or silver.
